Every day, I see clients struggling to determine the right acrylic sheet thickness for their projects. Choosing incorrectly can lead to structural failures, wasted materials, and unnecessary expenses that impact your bottom line.
The ideal thickness for cut-to-size acrylic sheets depends primarily on your application's load requirements, span distance, and environmental conditions. For most display cases and retail fixtures, 3mm to 6mm thickness suffices, while structural applications typically need 8mm or greater.
After 15 years of manufacturing custom acrylic solutions, I've learned that selecting the right thickness involves more than just picking the strongest option. Let me guide you through the essential factors that will help you make an informed decision for your specific needs.

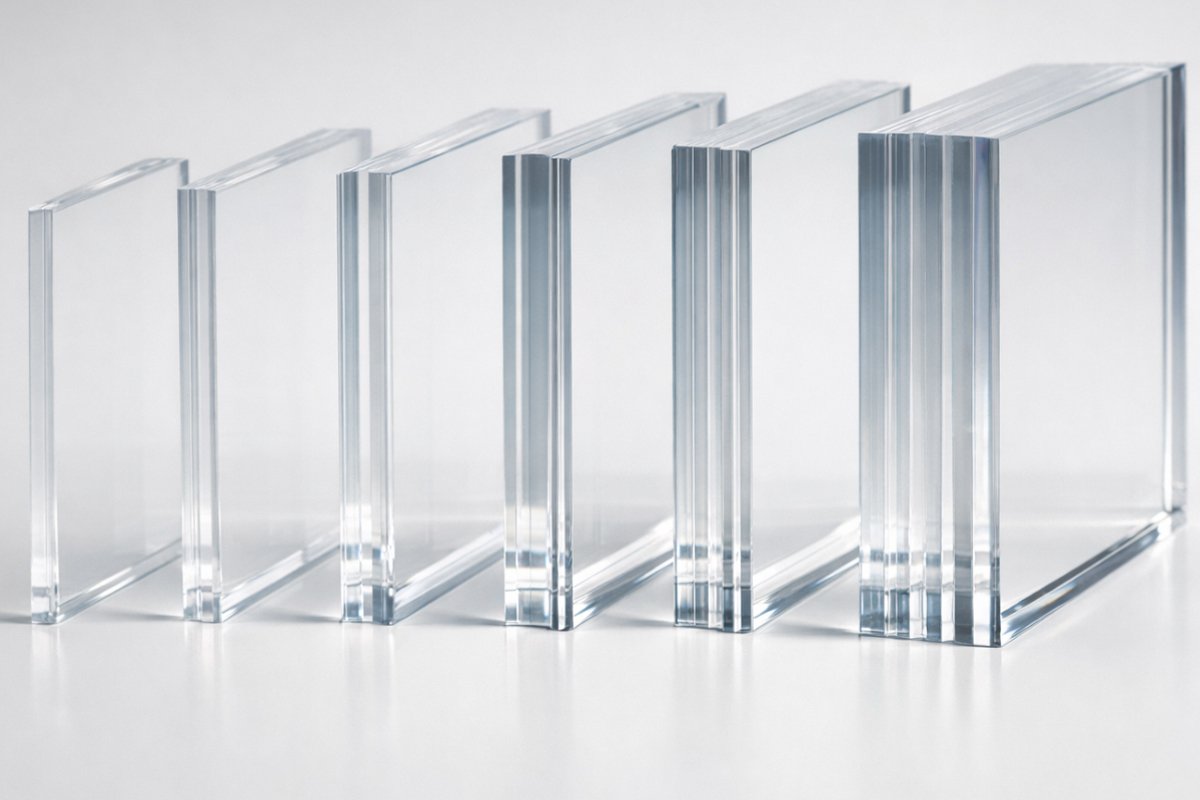

What Thickness of Acrylic Sheet Do I Need for My Application?
Many buyers make the costly mistake of overestimating their thickness requirements, leading to unnecessarily expensive materials and heavier products that are harder to handle and install.
For vertical displays and signage, use 3mm thickness for areas under 2 square feet. Choose 4-6mm for medium-sized displays up to 4 square feet. Large displays or cases bearing weight need 8-12mm thickness. Horizontal surfaces requiring load-bearing capacity should be at least 10mm thick.

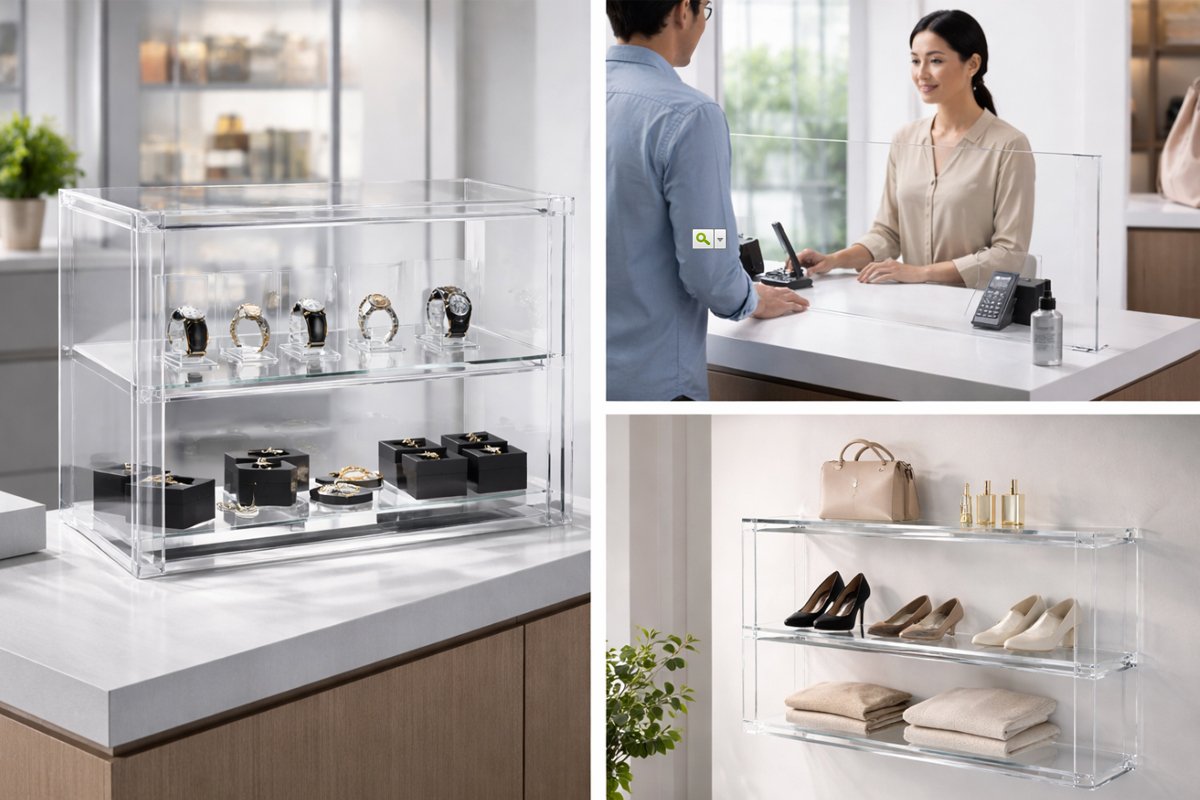

Let's break down thickness requirements by common applications:
Retail Displays
| Application | Recommended Thickness | Max Size |
|---|---|---|
| Product Risers | 3mm - 4mm | 12" x 12" |
| Counter Displays | 4mm - 6mm | 24" x 24" |
| Floor Displays | 8mm - 12mm | 48" x 72" |
Protection Barriers
| Type | Recommended Thickness | Notes |
|---|---|---|
| Counter Shields | 4mm - 6mm | With support base |
| Freestanding Barriers | 8mm - 12mm | Self-supporting |
| Sneeze Guards | 3mm - 4mm | With mounting |
Furniture & Fixtures
| Item | Recommended Thickness | Load Capacity |
|---|---|---|
| Table Tops | 12mm - 25mm | Up to 100 lbs |
| Shelving | 8mm - 12mm | 15-30 lbs/sq ft |
| Cabinet Doors | 4mm - 6mm | N/A |
Is Thicker Acrylic Always Better for Strength and Durability?
A common misconception I encounter is that thicker always means better. This thinking often results in overengineered solutions that waste both material and money.
Thicker acrylic isn't always better - it depends on your specific application. While thicker sheets offer more strength, they also add weight, increase costs, and can be harder to fabricate. The optimal thickness balances structural requirements with practical considerations like weight and cost.
Let's examine the key factors that influence thickness selection:

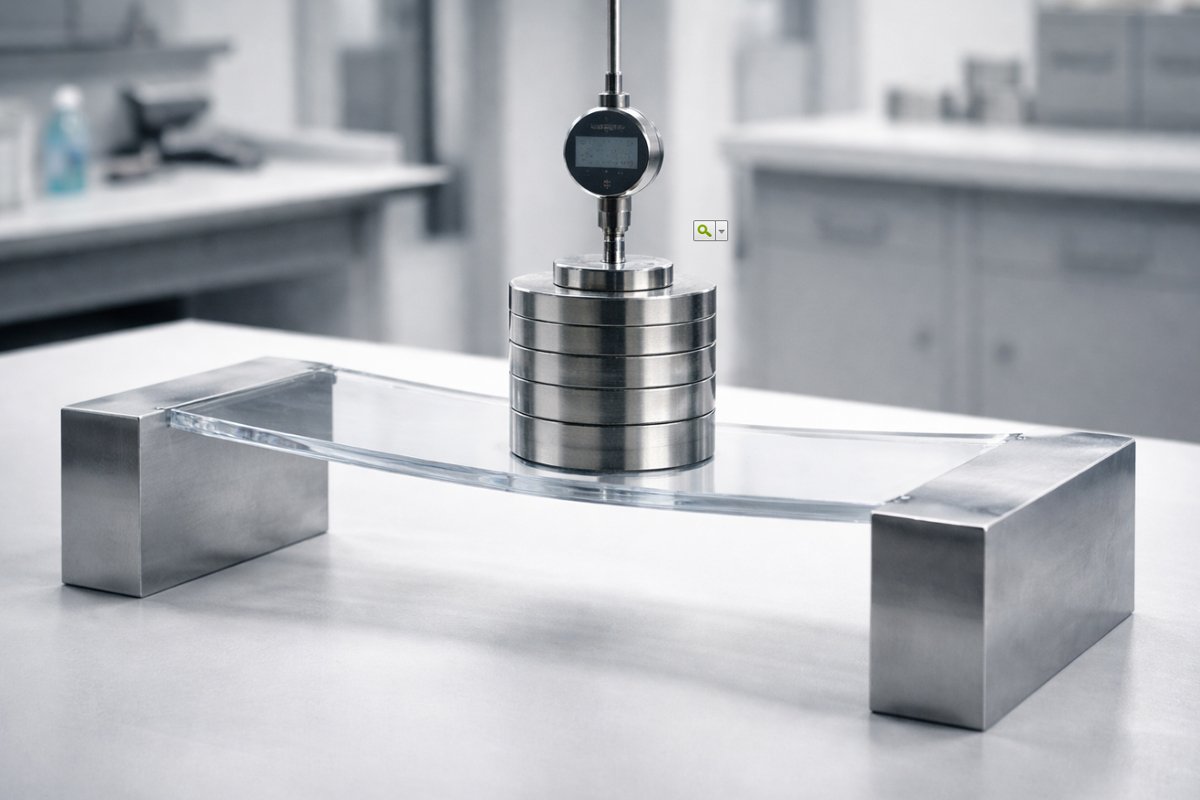

Load-Bearing Capacity
- Static Load: Weight that remains constant
- Dynamic Load: Moving or changing forces
- Impact Resistance: Ability to withstand sudden forces
Environmental Factors
- Temperature variations
- UV exposure
- Chemical exposure
- Humidity levels
Installation Method
- Edge support requirements
- Mounting systems
- Joint designs
- Expansion allowance
Based on our factory testing data, here's a practical guide for thickness selection:
- Calculate the maximum load requirement
- Measure the unsupported span distance
- Consider environmental factors
- Factor in safety margins
- Account for fabrication methods
I recommend starting with the minimum thickness that meets your structural requirements, then adjusting based on practical considerations and long-term durability needs.
Conclusion
Choosing the right acrylic thickness doesn't have to be complicated. Focus on your specific application requirements, consider environmental factors, and balance structural needs with practical limitations.
